Specifications – Audio
Frequency response: 40Hz – 22kHz (typical in-room)
Tweeter: 27mm silk dome with neodymium motor
Woofer: 17cm/6.5" Ruark NS+ long-throw driver, treated fibre cone, 35mm 2-layer copper voice coil with Strontium ferrite motor
Cabinet type: dual-flared tuned bass-reflex with decoupled baffle technology
Cabinet volume: 14.5 litres
Tuning frequency: 42Hz
Nominal impedance: 6 ohm (min 3.8 ohm @ 5kHz)
Crossover frequency: 2.2kHz
Crossover type: optimised 2nd order, premium audio film capacitors, low-loss inductors
Sensitivity (2.83V @ 1m): 87dB
Recommended amplifier power: 50–250W

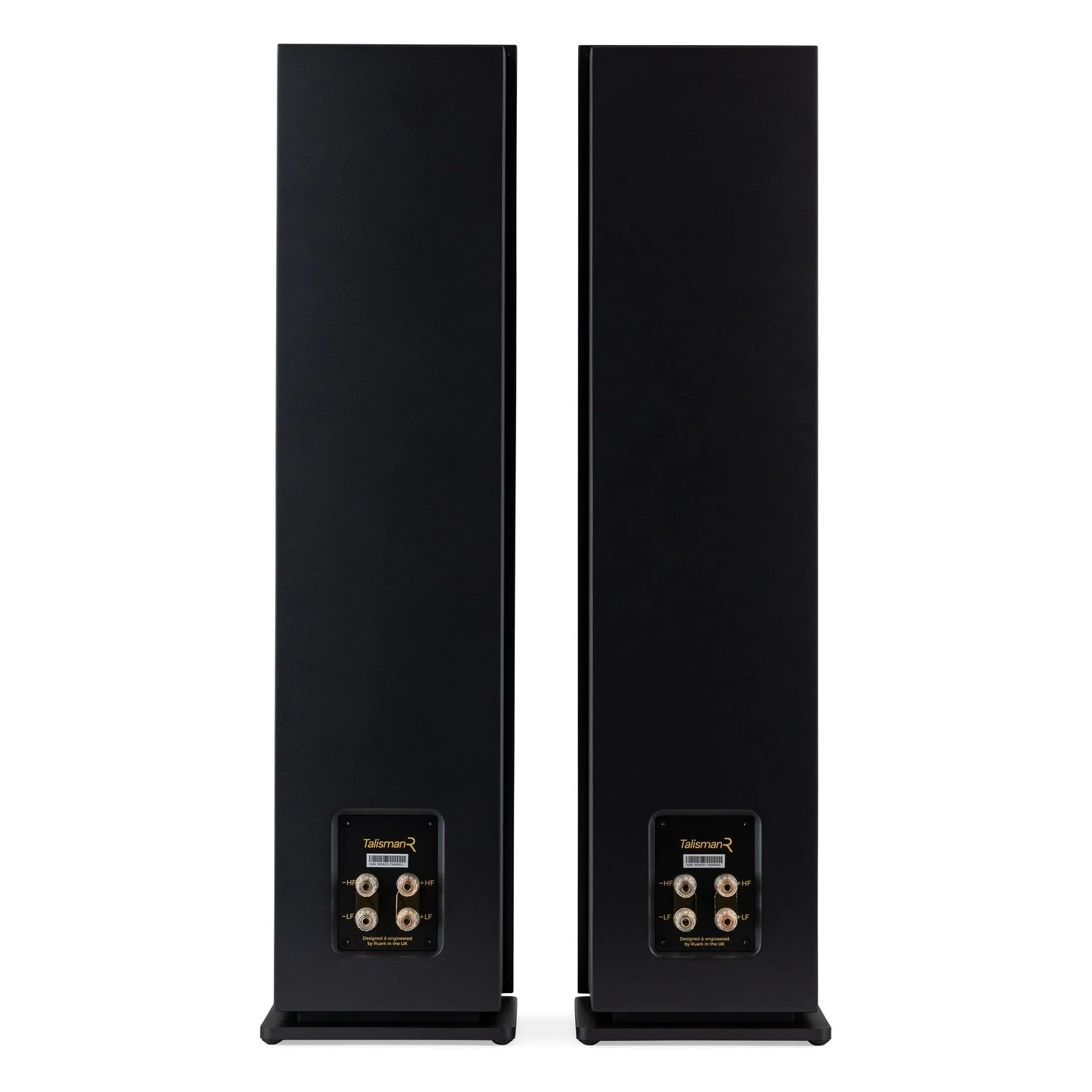

Connection type: dual gold-plated 4mm multi-way binding posts for single-wire or bi-wire connection; compatible with banana plug, spade terminal or bare wire

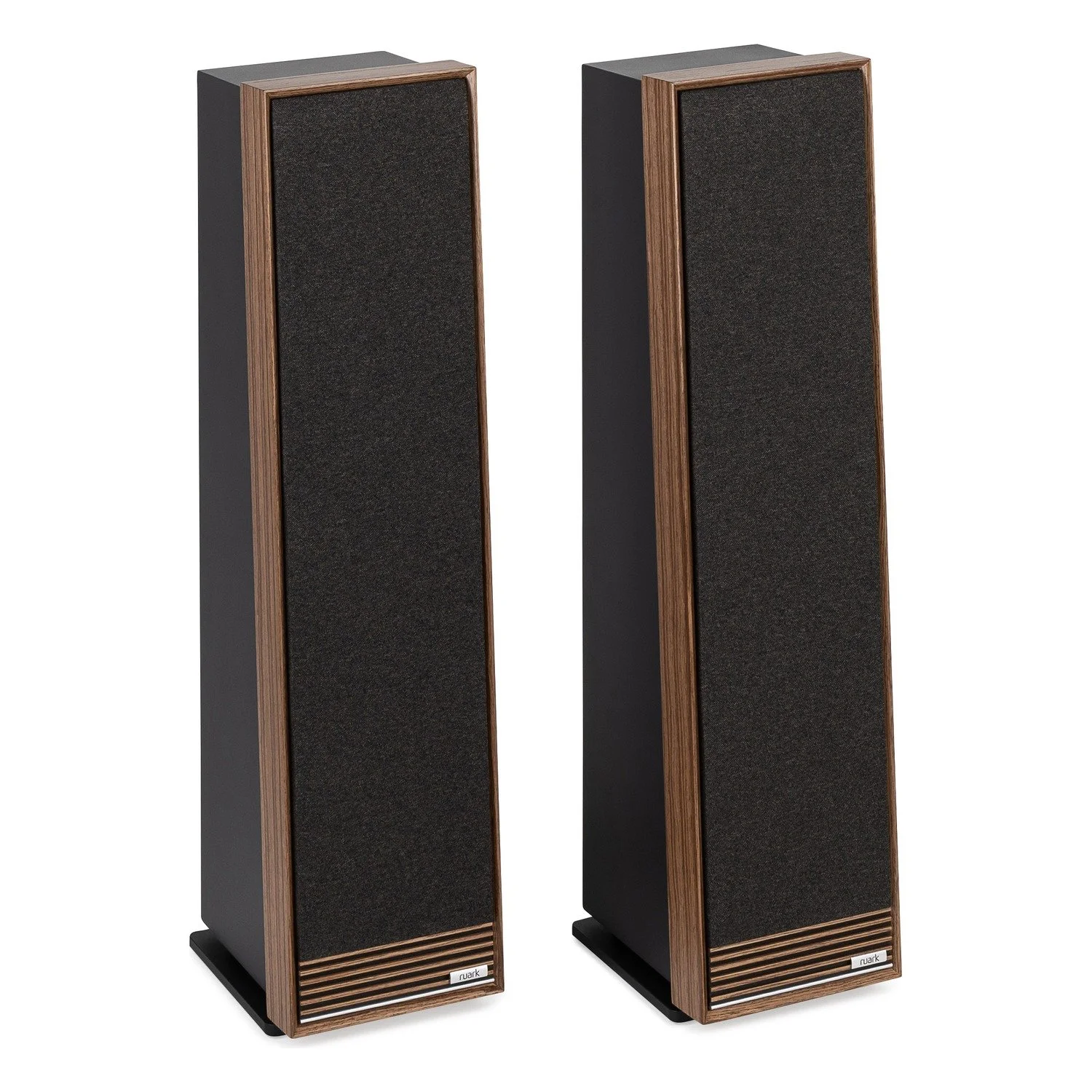

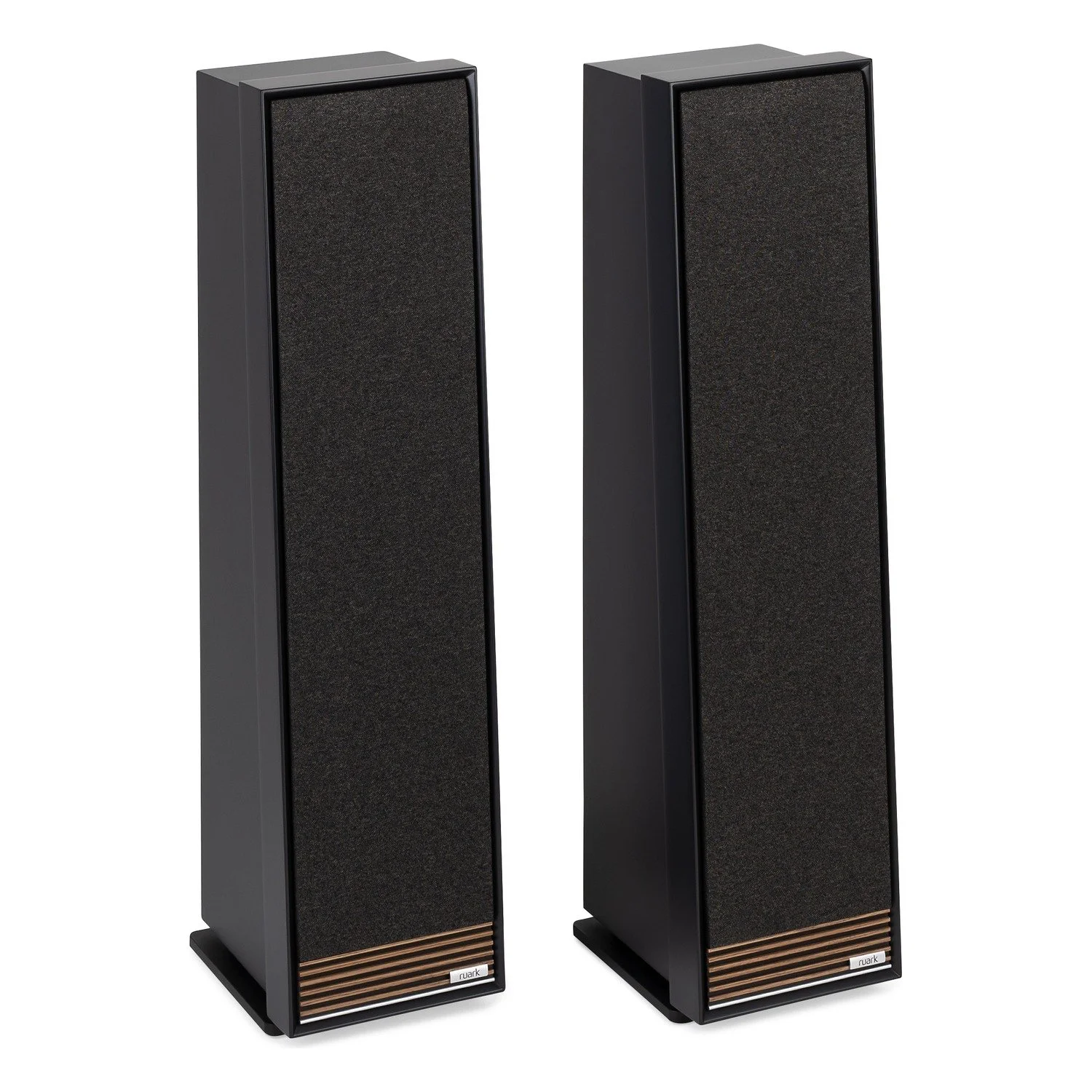

Grille: removable magnetic frame with acoustically transparent fabric
Placement: floorstanding
Specifications – General
Product dimensions (single speaker): H850 × W210 × D250mm
Product weight (single speaker): 17.6kg
In the box (per speaker)
Talisman-R (single)
Quick Start Guide
Adjustable rubber coned feet
Adjustable carpet spikes
Carton (single speaker)
Carton dimensions: H975 × W325 × D395mm
Packaged weight: 20.5kg
Warranty
Two-year guarantee, extended to three years free when registered online with Ruark
