Ruark R3S

Features at a glance

Audio

• 2 × 75mm Ruark NS+ drive units

• 20W Class A/B amplifier

• Adjustable bass, treble and loudness option

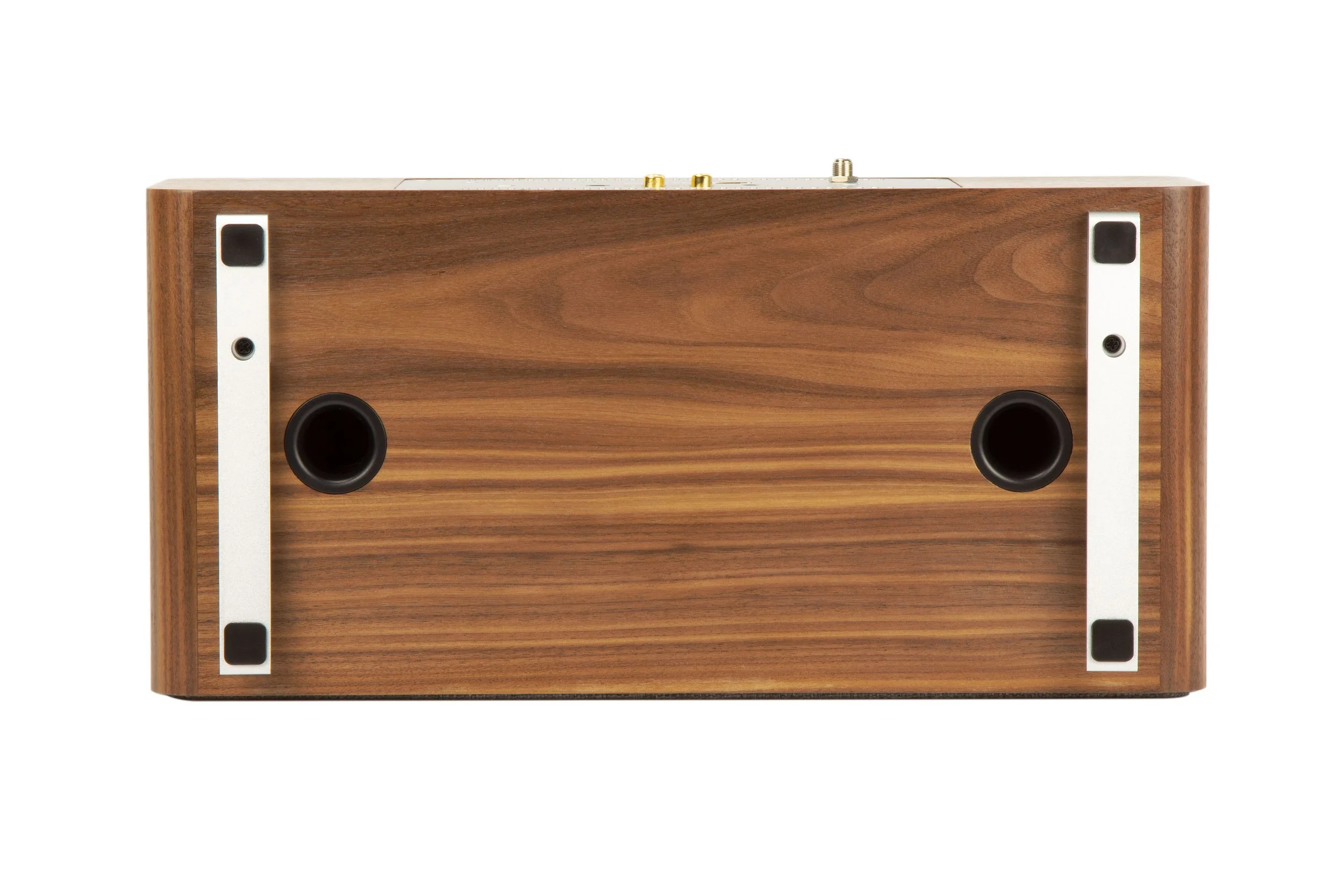

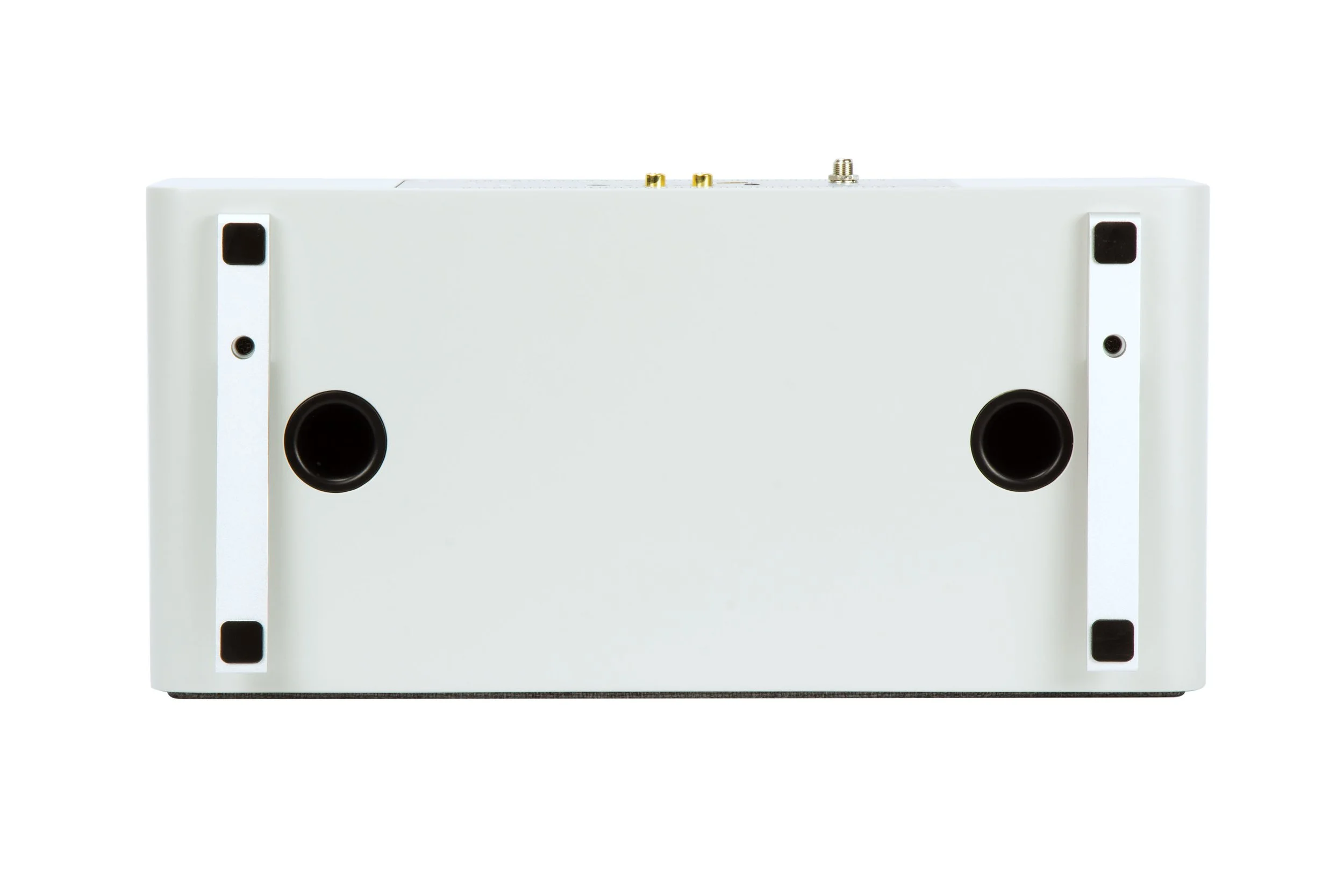

• Tuned bass reflex enclosure

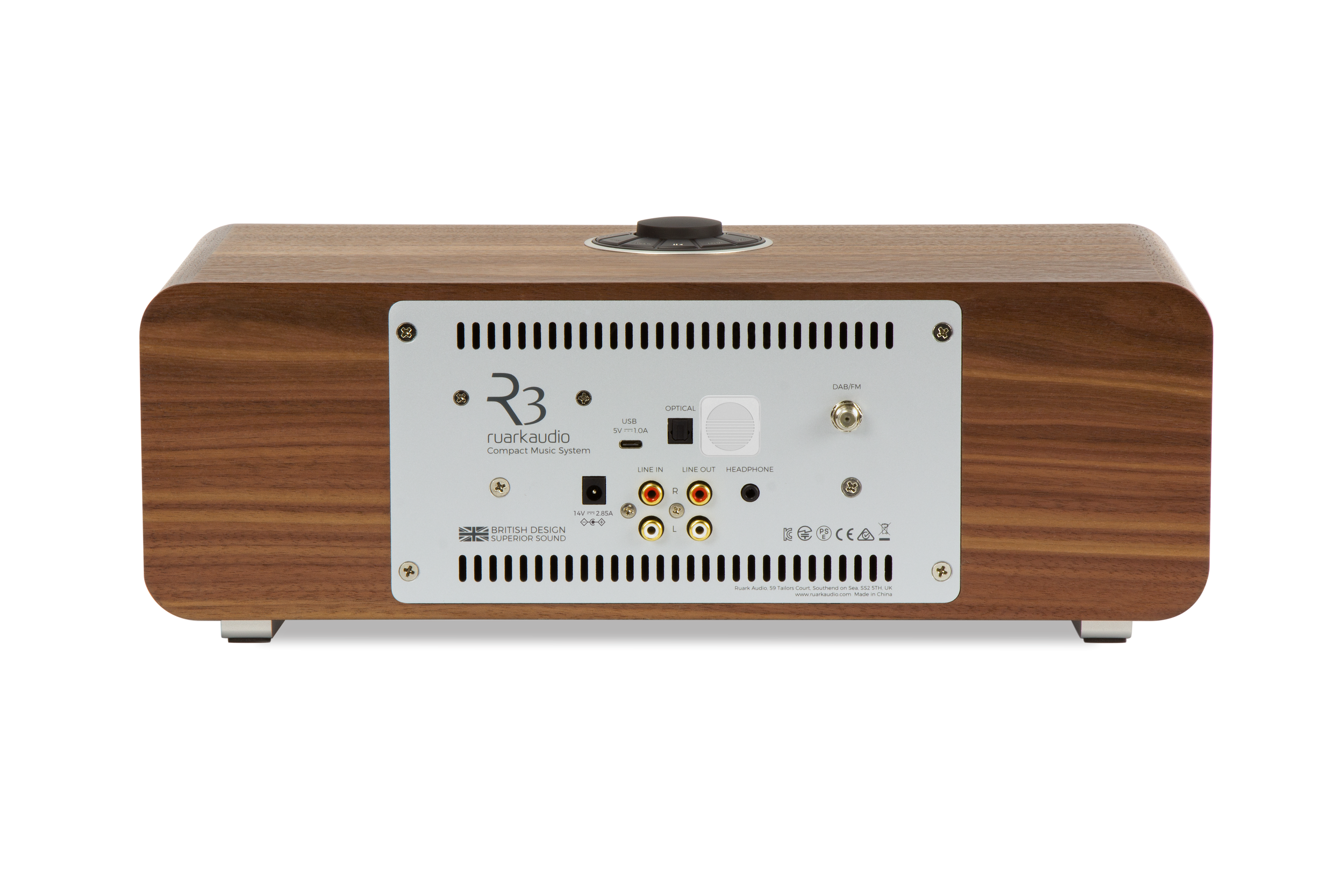

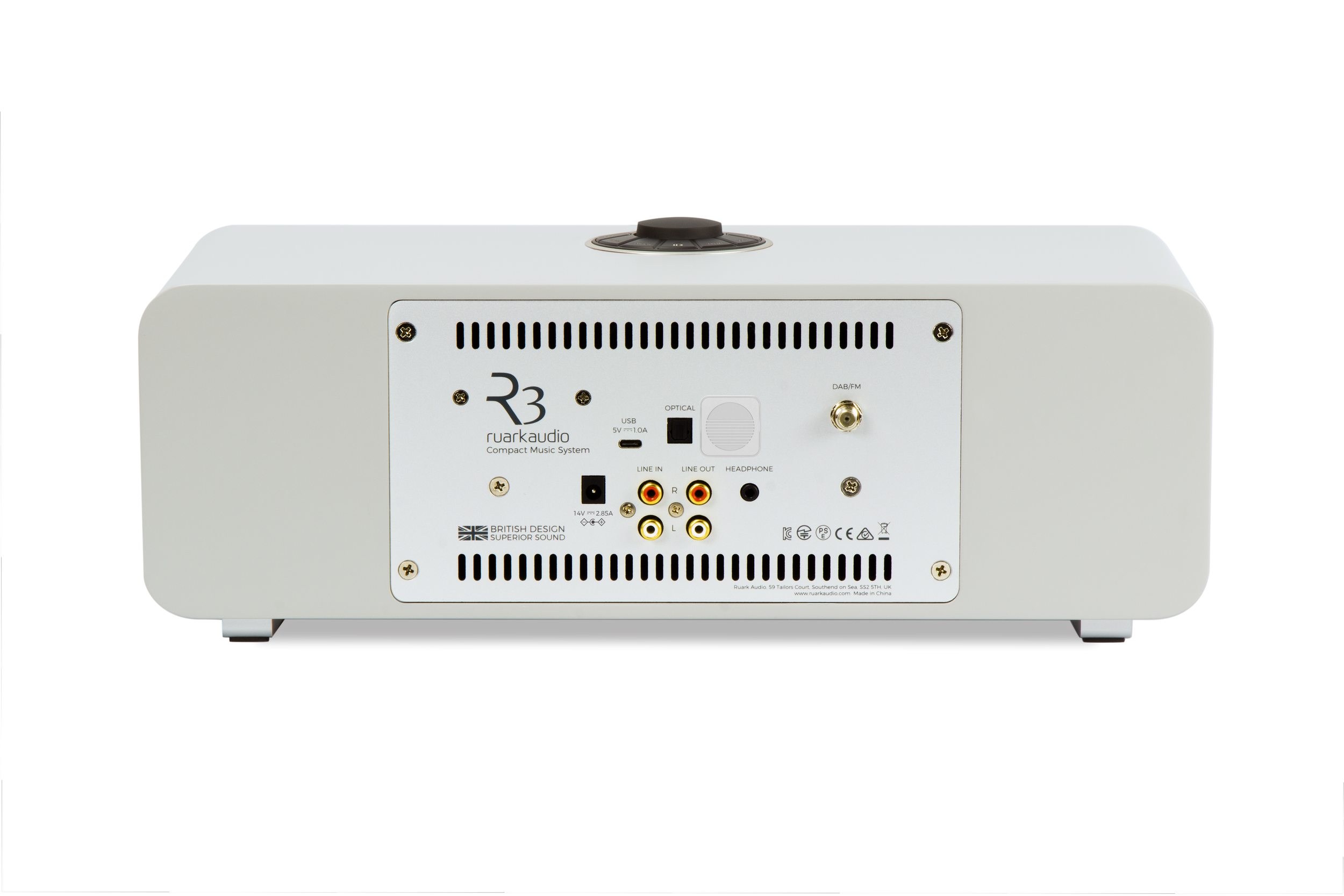

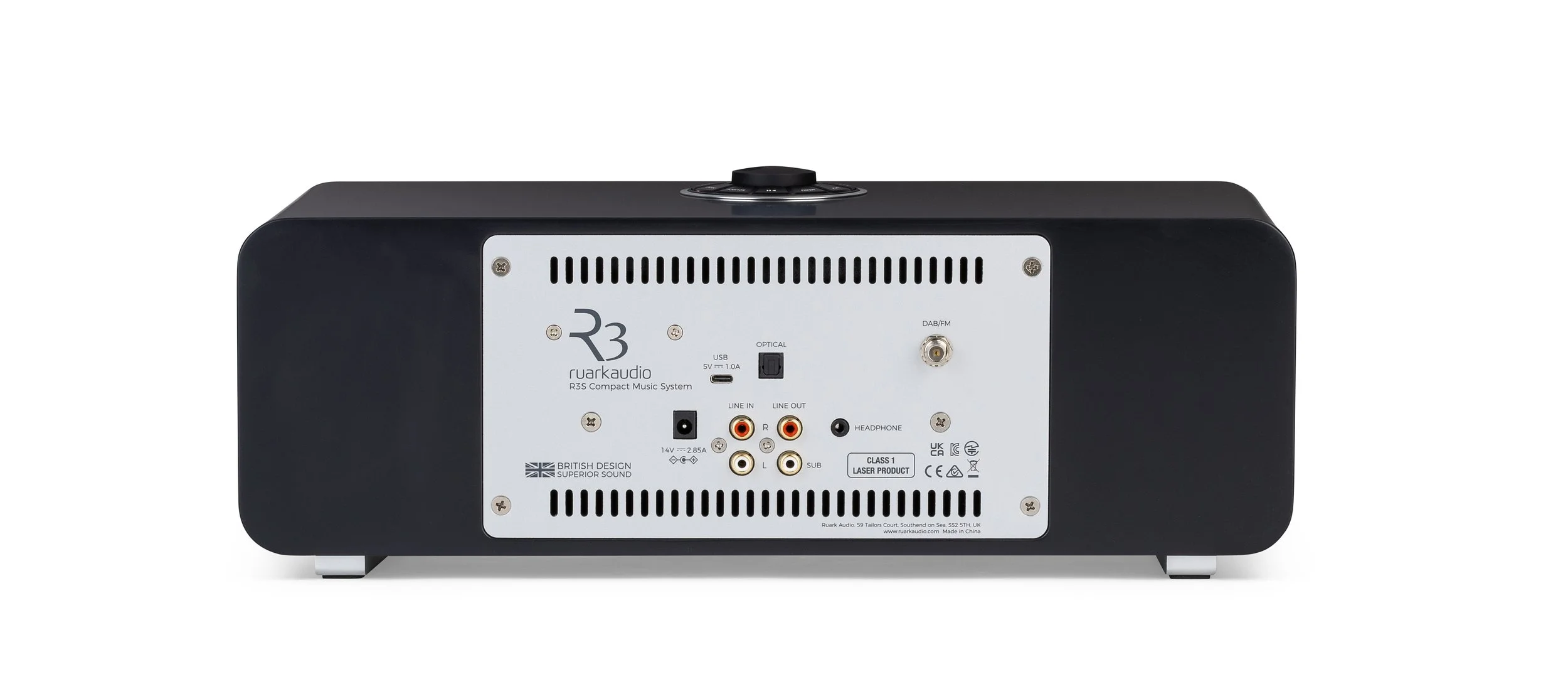

Connectivity

• DAB/DAB+, FM with RDS (87.5-108MHz) and Internet Radio (8 radio presets per mode)

• Slot loading CD player (CD, CD-ROM, CD-R/RW discs; MP3, WMA & AAC up to 320 Kbps)

• Bluetooth V5.2 SBC, BLE, A2DP

• Wi-Fi 802.11b/g/n, WPS2 setup, WEP, WPA & WPA2

• Spotify Connect, Deezer and Amazon Music compatibility

• Optical input (TOSLINK 24-bit 192kHz)

• Stereo RCA line input

• 3.5mm stereo jack headphone output

• Stereo RCA line output

• Subwoofer output

• USB 2.0 Type-C Fat32 flash drive compatible (MP3 playback up to 48kHz 320kbps)

• Detachable telescopic aerial F-type connector

Features

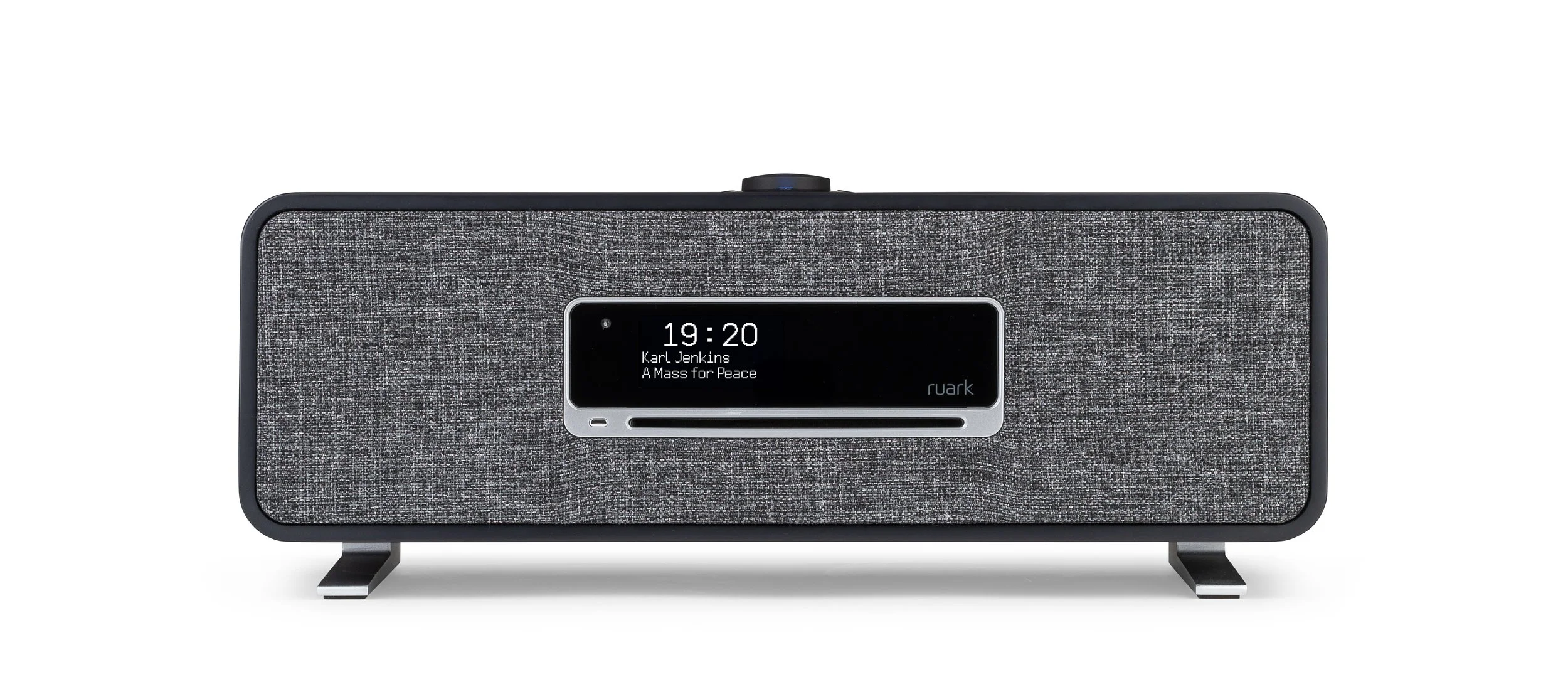

• High-contrast OLED display with auto dimming

• Compatible with OKTIV control app (iOS & Android)

• Dual alarms: daily, once, weekends, weekdays

• Auto-standby automatic power saving mode

• Adjustable input level

• USB Type-C charge port 5V 1A (5W)

• Real time clock with internal battery backup

General specifications

• Finishes: Rich Walnut, Soft Grey and Satin Charcoal

• Product dimensions: H167 × W420 × D220mm

• Power consumption: 1.6 W standby, 5-10 W typical

• Product weight: 5.2kg

In the box

• Ruark R3S

• AC power adapter (14VDC 2.85A 40W output, 1.8m cable, 2.1 × 5.5mm DC plug)

• Remote control with batteries

• Quick start guide

• Telescopic aerial

• Aerial Spanner
