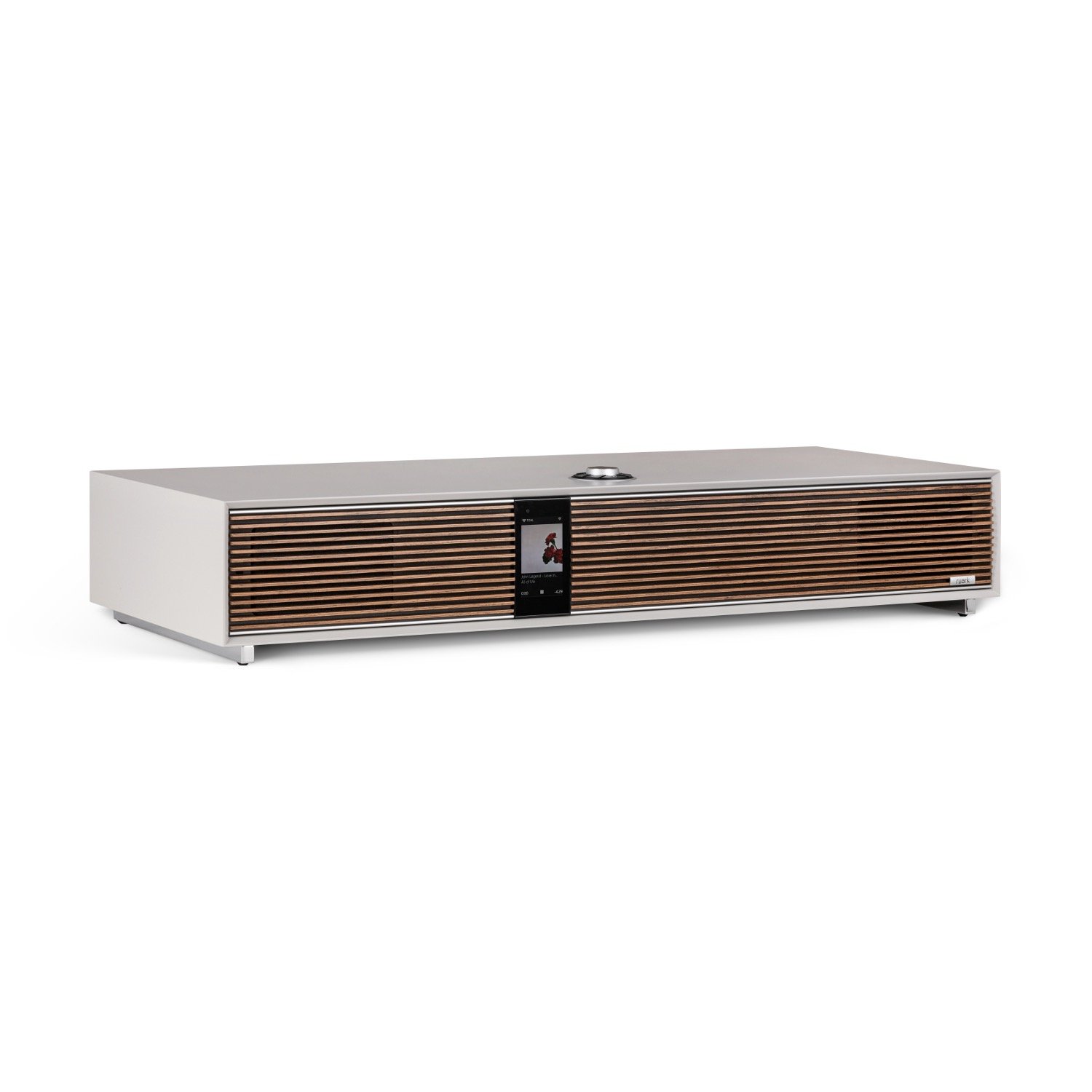

Ruark R810 High Fidelity Radiogram
The Ruark R810 is a fully integrated entertainment system and provides all the connectivity you are ever likely to need. Streaming is its forte, but if you want to play LPs or CDs, these can easily be enjoyed by connecting a turntable to the dedicated phono inputs or the Ruark R-CD100 CD player to the USB-C socket on the rear panel.
Apple AirPlay and Google Cast
Spotify Connect and TIDAL Connect built-in
Apple Music, BBC Sounds, Deezer, Qobuz and more
Hi-Res music file support up to 32-bit 384kHz
Internet/DAB/DAB+ and FM tuners
HDMI ARC/eARC connection
The Ruark R810 is a fully integrated entertainment system and provides all the connectivity you are ever likely to need. Streaming is its forte, but if you want to play LPs or CDs, these can easily be enjoyed by connecting a turntable to the dedicated phono inputs or the Ruark R-CD100 CD player to the USB-C socket on the rear panel.
Apple AirPlay and Google Cast
Spotify Connect and TIDAL Connect built-in
Apple Music, BBC Sounds, Deezer, Qobuz and more
Hi-Res music file support up to 32-bit 384kHz
Internet/DAB/DAB+ and FM tuners
HDMI ARC/eARC connection
The Ruark R810 is a fully integrated entertainment system and provides all the connectivity you are ever likely to need. Streaming is its forte, but if you want to play LPs or CDs, these can easily be enjoyed by connecting a turntable to the dedicated phono inputs or the Ruark R-CD100 CD player to the USB-C socket on the rear panel.
Apple AirPlay and Google Cast
Spotify Connect and TIDAL Connect built-in
Apple Music, BBC Sounds, Deezer, Qobuz and more
Hi-Res music file support up to 32-bit 384kHz
Internet/DAB/DAB+ and FM tuners
HDMI ARC/eARC connection
Fequency response
30Hz - 22kHz
Speaker units
2 × Ruark 27mm silk dome tweeters,
2 × Ruark 100mm NS+ bass-mid units,
1 × Ruark 200mm long throw subwoofer
Amplifier
180W RMS Discrete 5-channel Class A-B
Enhancements
Adjustable treble, bass and sub settings,
Stereo+ audio enhancement
Adaptive EQ provides ideal sound according to volume
Cabinet type
Tuned reflex stereo enclosures and sealed subwoofer enclosure
Radio
Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz
Multiroom capable
Via Apple AirPlay and Google Cast
Wi-Fi
802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Streaming
Apple AirPlay and Google Cast
Built-in music services
Spotify Connect and TIDAL Connect
Supported music services
Amazon Music, BBC Sounds, Deezer, Qobuz and many more
Bluetooth
5.1, aptX HD, SBC, AAC, BLE, A2DP
Ethernet
RJ45 connector 10/100 Mbps
DLNA
UPnP™ DLNA media server compatible
CD support
CD playback via optional R-CD100 CD player
HDMI
ARC and eARC
Line-input
Stereo RCA input (up to 2.3Vrms)
Turntable input
Stereo RCA input with RIAA MM phono gain stage
Optical input
TOSLINK digital input up to 24-bit 96KHz
USB-C
playback port
Aerial Connector
75Ω F-type
FLAC, AIFF, ALAC and WAV
up to 32-bit 384kHz
MP3
up to 48kHz 320kbps
AAC/AAC-LC/HE-AAC/HE-AAC v2
up to 96kHz 320kbps
Standard finishes
Fused Walnut Veneer or Soft Grey Lacquer
Product dimensions
H152 × W1000 × D400mm (cabinet)
H650 × W1000 × D435mm (inc. stand, dial and mains connector)
Product weight
27kg (30.7kg inc. stand)
Product power input
100-240VAC, 50-60Hz, 2.5A
Power consumption
<2W standby. 10W idle
Gift Box Content
2m mains power cable,
1 × polished chrome frame stand,
2 × polished chrome bar legs for mounting R810 on existing unit,
Quick start guide
RotoDial BT LE rechargeable remote, telescopic aerial and spanner
